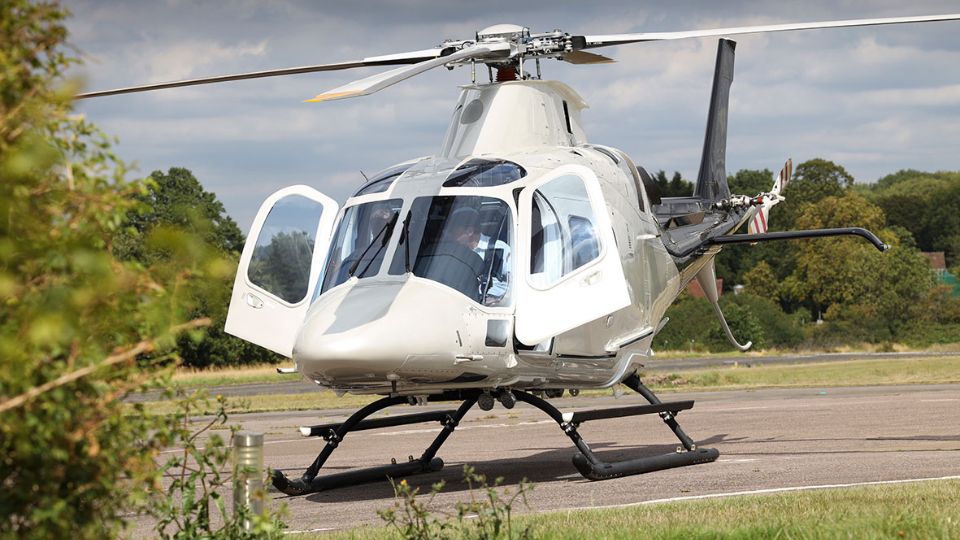

Agusta AW109
Twin engine utility helicopter
AW109 is an elegant twin-engine helicopter offering speed, comfort, and versatility.
The Agusta AW109 is a lightweight twin-engine helicopter renowned for its speed, elegance, and versatility. It serves various roles including executive transport, EMS, and law enforcement. The AW109 features a streamlined design, retractable landing gear, and advanced avionics, ensuring high performance and safety. Its spacious cabin accommodates up to 7 passengers, offering comfort and flexibility. The helicopter’s agility and reliability have made it a popular choice among operators worldwide.
Book an Experience with us
Technical Specifications
| Capacity | |
| Passenger transportation | 1 pilot + 4 passengers |
| Weights | |
| Maximum take-off weight | 1,715 kg / 3,781 lbs |
| Maximum operational weight in external load configuration | 1,800 kg / 3,968 lbs |
| Empty weight, standard configuration | 994 kg / 2,191 lbs |
| Useful load, standard configuration | 721 kg / 1,543 lbs |
| Maximum cargo-swing load | 700 kg / 1,5473 lbs |
| Standard fuel tank | 321 kg / 707 lbs |
| Engine | 1 SAFRAN ARRIUS 2F |
| Take-off power | 376 kW / 504 shp |
| Performance at MTOW, ISA, SL | |
| Maximum speed (Vne) | 278 km/h per hr / 150 kts |
| Rate of climb | 5.84 m per sec/1,150 ft per min |
| Service ceiling | 5,182 m / 17,000 ft |
| Hover ceiling OGE at take-off power | 2,316 m / 7,600 ft |
| Maximum range without reserve at recommended cruise speed | 710 km / 383 nm |
| Operation Limitations | |
| Maximum operating altitude | 6,096 m / 20,000 ft |
| Minimum temperature | – 40°C / – 40°F |
| Maximum temperature | ISA + 35°C (+ 95°F) limited to + 50°C (+ 122°F) |
